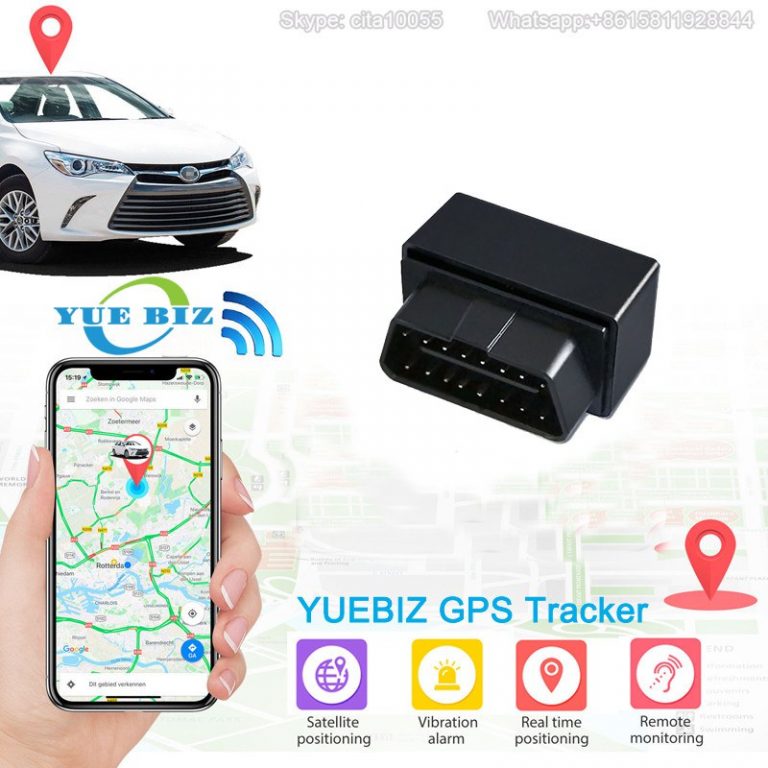

OBD GPS Tracker for Car easy to install and use
Model:YB10

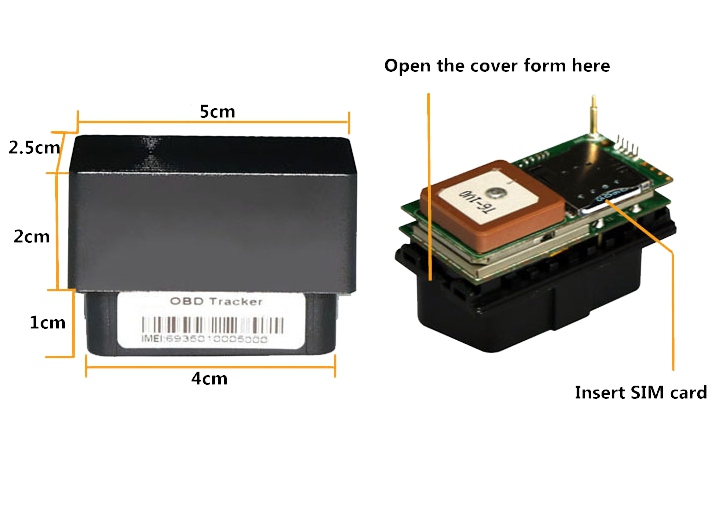

Size:50(L)mm*29(W)mm*38(H)mm
Weight:27.5g
Introduction:What is OBD GPS Tracker? which is small in size,easy to install wirelessly,powerful: Over-speed alarm,Vibration alarm,Voice Monitoring,Cut off Alarm,Geo-Fence Alarm.
OBD GPS Tracker
YB10 Main Functions:
1,Real Time Tracking by APP&PC
2,Over-speed alarm
3,Vibration alarm
4,Voice Monitoring
5,Cut off Alarm
6,Geo-Fence Alarm
OBD GPS Tracker manufacturer
YB10 OBD GPS Tracker
Super Mini OBD vehicle GPS Tracker
Plug & play OBD Tracker:
1.GPS+LBS positioning
Allow the location to be pinpointed accurately and rapidly.
2.ACC detection for ignition status
Be aware of the ignition status whenever you need.
3.Plug out alarm
Alarm triggered if it is plugged out from the car.
4.Compact size
Ideal for installation in a small area to minimize tampering.
5.Multiple alarms
Receive notices for overspeed,geo-fence violation,etc.
6.Easy installation
Plug-and-track,easy to swap between vehicles.
OBD Interface GPS Tracker:
No need to install,No need to charge.
Location,Built in battery,Built in shock sensor,
Realtime Tracking,Geo fence,Multiple types of Alarm,
Mileage statistics,Track replay,Sleep mode.
(Note:most of OBD interfaces are distributed in A.B.C.D.E these place)
GPS+LBS,satellite positioning,all-round no dead Angle,on-call 24 hours a day
Overspeed alarm:
When the vehicle speed,equipment will send alarm to your mobile phone,
in a time manner to avoid accidents.
YB10 Technical parameter:
1,GSM：850/900/1800/1900MHz
2,GPRS：Class12,TCP/IP
3,Working Voltage：9-36V DC
4,Working current：≈22mA (12vDC)
5,Working current：≈12mA (24vDC)
6,GPS locating time：Cold start≈38s（Open sky）Warm start≈32s
Hot start≈2s（Open sky）
7,GPS Precision：10m（2D RM）
8,Working temperature：-20℃～+70℃
9,Working humidity：20%～80%RH
Vibration Alarm:The Quickest
YB10 has internal high sensitive vibration sensor which for sensing vehicle vibration and sending alarm.
APPLICATION:Fleet Management,Vehicle insurance,ELD,car rental,car service shop.
Applicable To Most Type of Vehicle
INSTALLATION
YB10 OBD INTERFACE
The position of OBD interface are usually as below(A,B,C or D)
No wire installation,flexible remove make the device widely accepted by client for personal use.
phone Tracking:
Please download our phone APP(AI Tracker) for IOS/Android system according to the insruction handbook after you bought trackers.
Tracking Car’s Trails By Phone:
Tracking Car’s Trails isn’t a dream.
We developed the APP for using smart phone to track the car.All you need to do is download and install the APP to your phone,and then you can track your car immediately.
Replaying Car’s Historical Route:
The historical moving route of the latest 3 months of the tracker can be replayed on our Android/IOS tracking APP(AI Tracker) or Webpage(http://www.gpsyi.com) tracking platform.
Historical Moving Route Replayed on Computer Webpage(http://www.gpsyi.com) platform:
Personal Vehicle:
Nowadays,thieves are active thus we are nervous everyday.
Except that,friends borrows our cars etc.will also make us upset…
BUT! A vehicle GPS tracker can solve the problems!
OBD Tracker
OBD Tracker manufacturer
Also,by using the vehicle GPS tracker,we can see where they are and which direction they are going to so that we can ensure their safeties.
Vehicle Rental Company:
Car lending and tickets receiving…
Fake certifications mortgage,do not return car,hit and run
Fleet Management:
Vehicle fleet management
Transportation
Mini OBD Tracker Product Description:
Vehicle OBD GPS tracker YB10 is one of the independently researched and developed GPS products from YUEBIZ Technology Co., Ltd. which adopted imported high gain GPS and BEIDOU module, global commonly used GSM receiving antenna, with the lowest power consumption design, so it’s a most suitable and easily hidden and installed GPS tracker in car because of small type and light weight.
| Model | YB10 |
| Brand | YUEBIZ Technology |
| GSM frequency | Global commonly used 4 frequencies |
| GSM module | Quad band(GSM 850/900/ 1800/1900 Mhz) |
| GPS accuracy | 10 meters, 2D RMS |
| GPS sensitivity | -159 dBm |
| Speed accuracy | 0.1 meter/second |
| GPRS | Class 12, TCP/IP |
| Hot start | ≈2 second |
| Warm start | 28 seconds |
| Cold start | 38 seconds |
| Max altitude | 18,000 meters |
| Max speed | 515 meters/second |
| Gravitational acceleration | <4 grams |
| Network | GSM/GPRS |
| Weight | 27.5 grams |
| Working voltage range | 4.5-50V DC |
| Working temperature | -20~+70 ℃ |
| Working humidity | 20-80% RH |
| Stand-by working current | 25 mA for 12 V |
| Operating system for phone APP | Android 2.3 and higher, iOS 5.0 and higher |
| Size | Length: 5 cm Width: 2.9 cm Height: 3.8 cm |
| OBD power connector | To connect the car OBD port to charge. |
| GPS antenna | GPS accuracy: 10 meters, 2D RMS |
| SIM card slot | 1 unit |
| Accessories | 1*user manual |
OBD Tracker for Car
Functions:
Listen-in | The tracker supports remote voice monitoring. |
Low power alarm | Alarm message will be created if battery power is too low. |
Vibration alarm | Alarm message will be created if vehicle is shaking. |
Geofence | A range can be set on map and alarm messages will be sent once the tracker got in/out the range. |
Historical route replaying | Historical moving route of the latest 3 months(at least) of the tracker can be replayed. |
Base station positioning | Support. |
Residual battery power display | Residual battery power of the tracker can be displayed on the computer webpage platform and phone APP. |
Signal blind area storage | Positioning data will be saved when there is no GPRS signal until the signal found and the data uploded. |
Electricity outage alarm | Alarm message will be created once the tracker is out of electricity supplying(has been pulled out of vehicle OBD port). |
Positioning Frequency | Support. |
Mini OBD GPS Tracker Highlights:
-It supports remote voice monitoring.
-It’s charging by vehicle OBD port.
-It’s 24 hours online on computer webpage platform and phone APP.
-It’s cheaper than same type product for at least 20%.
-It’s easy to hide in car because it’s small and lightweight so it can be used for anti-theft.
-It supports displaying position and percent of residual battery power on software.
-It supports base station positioning so the accuracy is high.
-It has internal shock sensor and movement recognition system so alarm message will be sent when the vehicle is shaking.
-It can feedback the realtime position information by sending messages.
-It supports global commonly used GSM quad band.
-It has a function of GSM blind zone storage which can save the positioning data when there is no GPRS signal until the signal is found and the data is uploded.
-It’ll send alarm message once it out of charging(be pulled out from vehicle OBD port).
-Its integration level is very high so it’s easy to install.
-Its positioning frequency can be set.
-It’s dual mode positioning so the accuracy is high.
